Product Description

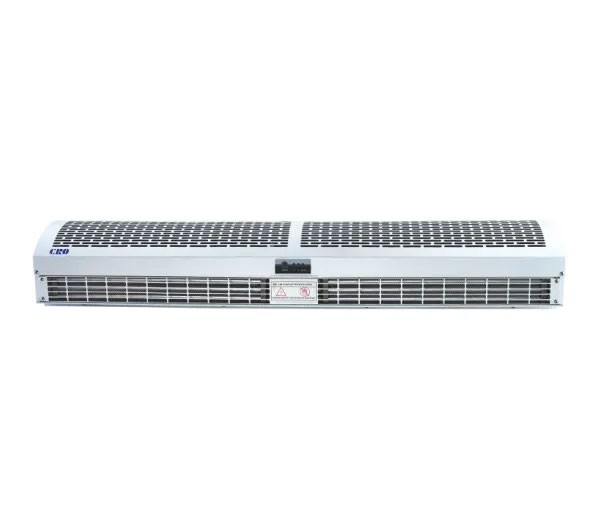

AIR CURTAINS are designed for installation in shops, office buildings, hotels and restaurants doorway. They discharge a curtain of air, which effectively shut out outside air. Use them to keep out insects, unpleasant smells, and dust from indoor where a large number of people pass in and out. These air curtains also prevent air escaping from an air-conditioned room.
Advantages
Selection of an air curtain
To select an air curtain, the following factors have to be kept in mind:
1、The height of the installation measured from the discharge diffuser to the floorThe width of the door
2、The location of the building to determine the level of protection needed against weather conditions
3、If the building has several doors in the same, different or opposite facadeIf the building has several stores connected by escalators
4、Pressure differences between the inside and outside of the building
5、Door characteristics: if always open, if automatic door, manual door, revolving door etc.Characteristics of the 6、ventilation and air conditioning installation
7、Voltage and electrical power availability
8、Type of business, style and decoration of the premises
Function
1、Adopted un-electrified surface PTC heater, super safer, fast temperature rising, automatic temperature control, creating a comfortable environment
2、Strong and fast heating, stable performance, low power consumption, normally start under -18°C environment
3、Normal or heating air can be chosen separately
4、PTC heating is with over-heated protector, effectively protecting and save energy
5、Delay turnoff protecting device automatically work when turning off heating, efficiently extend product life
6、Metal housing, advanced fir proof, easy installation and maintenance
7、Elegant and generous design
Technical Specifications
Model No. | Spec. | Air Speed |
Air Flow (m3/h) |
Height | Heater Para. |
Power (W) |
Noise (dB) |
Dimension (mm) |
N.W. (kg) |
MOQ(20GP) | |
Power (W) |
Curr/ph (A) |
||||||||||
RM2209-3DY | DoubletemperaturewithRemote Control | 6-8m/s | 1500 | 2.3-3.0m | 6000 | 10 | 150 | 55 | 900*221*183 | 14.5 | 450pcs |
RM2212-3DY | 2000 | 7200 | 12 | 220 | 57 | 1200*221*183 | 18.0 | 324pcs | |||
RM2215-3DY | 2500 | 9000 | 15 | 265 | 60 | 1500*221*183 | 22.0 | 247pcs |
